Panel, Player Specifications

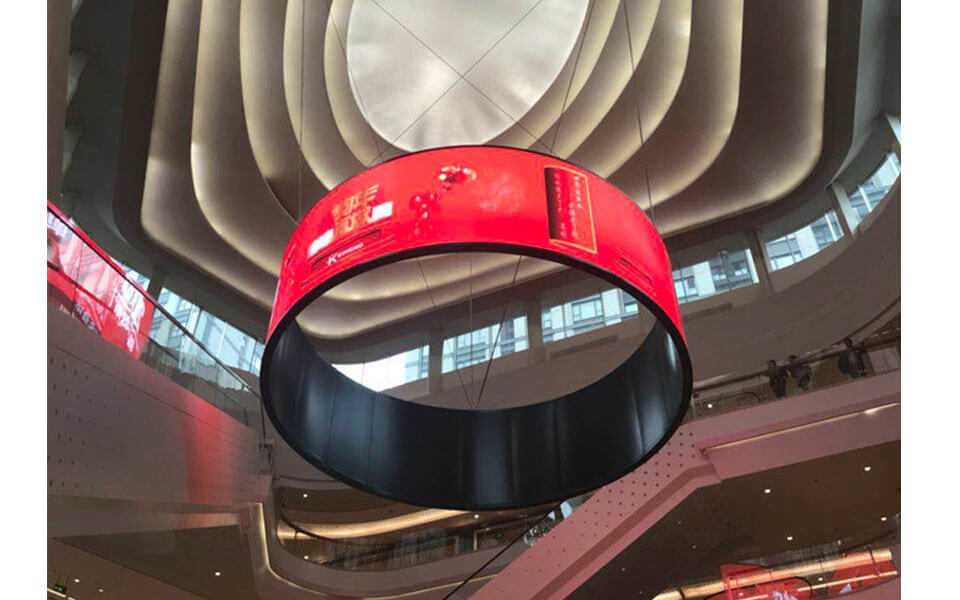

Product Name | P3 circle led display |
Product Model | FC-3 |
Pixel Pitch | 3mm |
Pixel Density | 111,111 dots/㎡ |
Led Configuration | SMD2121 |
Scan mode | 1/32 |
Module Size | 192x192mm |
Module Resolution | 64*64 |
Panel size | Custom |
Service type | Magnetic front service |
Brightness8 | 1000nits |
Viewing Angle | Vertical 140°,Horizontal 140° |
Viewing Distance | >3 meter |
Frame Rate | 60Hz |
Refresh Rate | 1920Hz |
IP Grade | IP40 |
Input Voltage | AC200-240V 50Hz |
Max. Power Consumption | 700w/㎡ |
Avg. Power Consumption | 250w/㎡ |
Working Temperature | -20~40℃ |
Working Humidity | 10%-90%RH |
Out Of Control Rate | 1/10,000, Zero before delivery |
Expected Lifespan | 100,000 hour |
