High Grey Level And High Refresh Rate
Low brightness with high grey level and high refresh rate, stable dynamic display effect, no ripple, no flicker, the edge of the image is clear, and the visual experience is more comfortable.
HD Seamless Display
Chestnuter HD LED Display series comes with complete display effect.

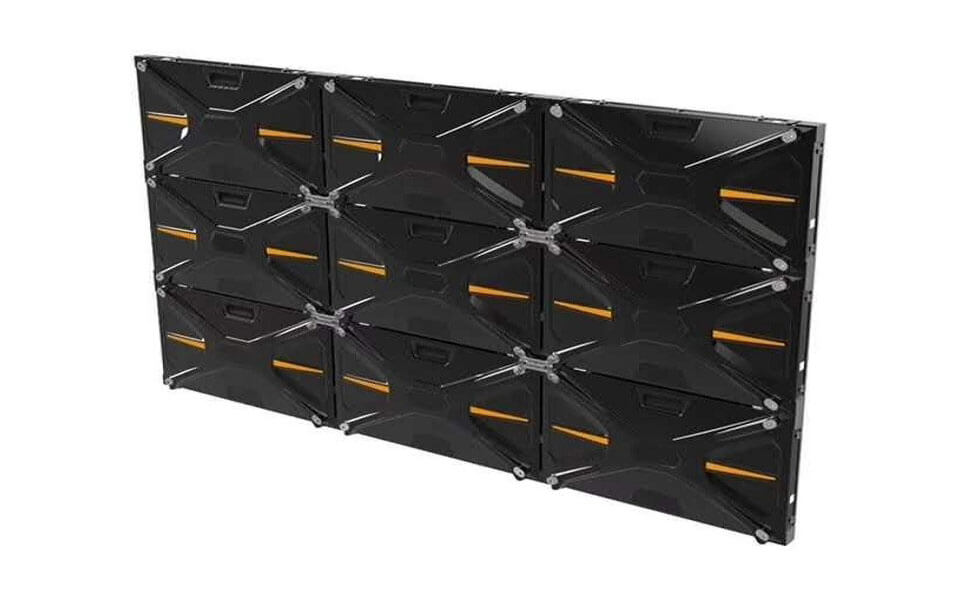

Die - Cast Aluminum Cabinet
Die cast aluminum cabinet, special heat exhaution design, ensure stable and safety performance.
Color Depth with 16-bit Color Processing
16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion. This creates a more realistic image.
Response in NANO Seconds
Frame changing in nanoseconds, fast dynamic display without ghosting and tailing.
Panel, Player Specifications
|
Small Pitch LED screen Technical Parameters |
||||
| Model | CST SP 1.2 | CST SP 1.5 | CST SP 1.8 | CST SP 2.5 |
| Pixel pitch (mm) | P1.25 | P1.5625 | P1.875 | P2.5 |
| Pixel density (dots/sqm) | 640000 | 409600 | 284444 | 160000 |
| LED configuration | SMD 1010 | SMD 1010 | SMD 1515 | SMD 2121 |
| Scanning | 30S | 32S | 30S | 30S |
| Module size (mm) | 150*168.5 | 150*168.5 | 150*168.5 | 150*168.5 |
| Module Resolution (pixels) | 120*135 | 96*108 | 80*90 | 60*68 |
| Cabinet size (mm) | 600*337.5*60 | 600*337.5*60 | 600*337.5*60 | 600*337.5*60 |
| Cabinet resolution (pixels) | 480*270 | 384*216 | 320*180 | 240*136 |
| Brightness (nits) | ≤550 | ≤600 | ≤800 | ≤800 |
| Grayscale(bits) | 14~16 | 14~16 | 14~16 | 14~16 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Max.consumption(w/sqm) | 1000 | 1000 | 1000 | 1000 |
| Avg.consumption(w/sqm) | 333 | 333 | 333 | 333 |
| Application | indoor | indoor | indoor | indoor |
| Maintenance | front and rear | front and rear | front and rear | front and rear |
